TLR-3

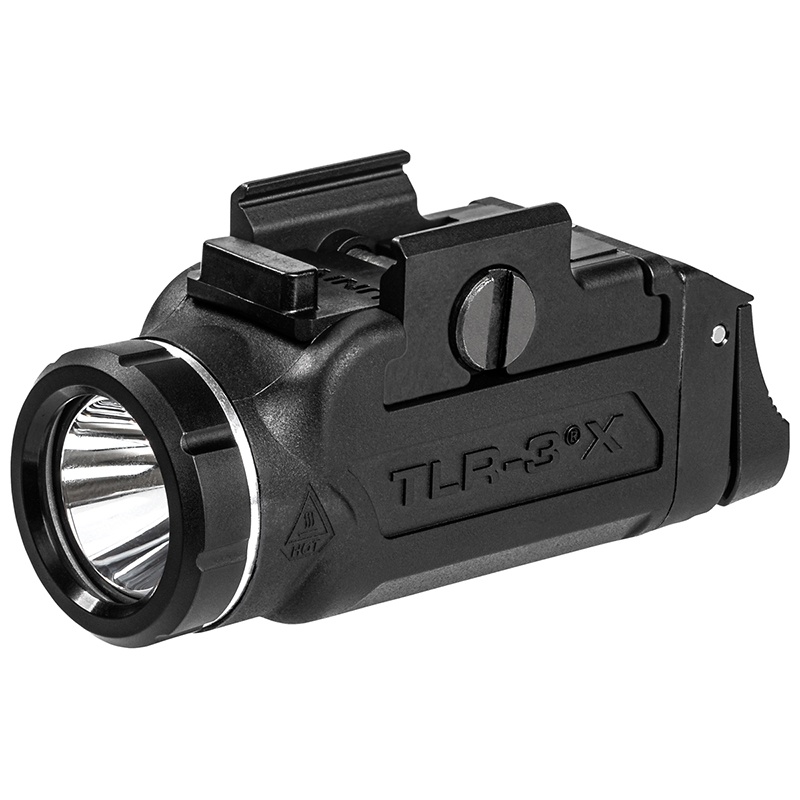

Streamlight TLR-3X
The Streamlight TLR-3X is a pistol-mounted LED weapon light rated at 500 lumens and 6,500 candela. That candela figure works out to an effective positive identification distance of 27 yards and visual impairment out to 3 yards, both calculated from the published beam data. It runs on CR123A or SL-B9 and is not rechargeable. It weighs 2.25 oz in a polymer body 2.75 inches long. Measured against the 148 weapon lights in the index, it lands in the dimmest quarter for output (500 lumens), in the least intense quarter for beam intensity (6,500 candela), and among the lightest 10 percent for weight (2.25 oz). It is one of 54 entries in the index that qualify as a light in the same 500 to 999 lumen class. The closest listed comparison is Streamlight TLR-7 X, the same brand's light in the same 500 to 999 lumen class, priced at $160.
| Series | TLR-3 |
| Light Color | White |
| Emitter Type | LED |
| Lumens | 500 |
| Candela | 6500 |
| Laser | No |
| Effective PID Distance (yds) | 27 |
| Max Effective PID Distance (yds) | 20 to 40 |
| Effective Visual Impairment (yds) | 3 |
| Max Effective Visual Impairment (yds) | Under 5 |
| Form Factor | Pistol |
| Battery | CR123A / SL-B9 |
| Rechargeable | No |
| Material | Polymer |
| Weight (oz) | 2.25 |
| Length (in) | 2.75 |
| Country of Manufacture | USA |
Browse all Weapon Lights or research the specs in the EDC Index comparison tool.
