Pinnacle

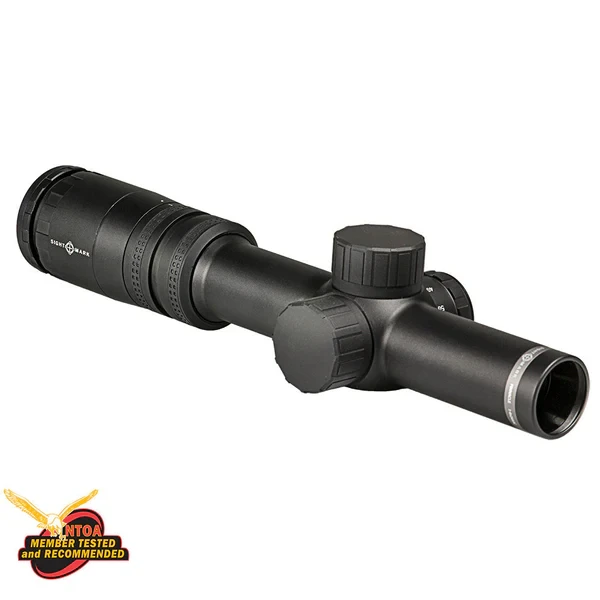

Sightmark Pinnacle 1-6x24 TMD
The Sightmark Pinnacle 1-6x24 TMD is a 1-6x low power variable optic with a first focal plane reticle, on a 24 mm objective and a 30 mm tube. Its TMD reticle is graduated in Mil, illuminated in red & green, and carrying BDC holdovers, with turrets adjusting in Mil. Field of view at 1x is 90 ft at 100 yards, eye relief is 4 in, and the scope is 10.24 inches long and 20.4 oz. Measured against the 236 LPVOs in the index, it lands about in the middle for weight (20.4 oz), in the shortest quarter for length (10.24 in), in the narrowest quarter for field of view at minimum magnification (90 ft at 100 yds), and in the least expensive quarter for price ($375). It is one of 81 entries in the index that qualify as a 1-6x scope. The closest listed comparison is Sightmark Presidio 1-6x24 SFP CR1, the same brand's 1-6x scope, priced at $165.
| Series | Pinnacle |
| Magnification Range | 1-6x |
| Objective Diameter (mm) | 24 |
| Tube Diameter (mm) | 30 |
| Focal Plane | FFP |
| Reticle Name | TMD |
| Reticle Unit | Mil |
| BDC | Yes |
| Illuminated | Yes |
| Illumination Color | Red & Green |
| Eye Relief (in) | 4 |
| Field of View at Min Magnification (ft/100 yds) | 90 |
| Adjustment Unit | Mil |
| Length (in) | 10.24 |
| Weight (oz) | 20.4 |
| Country of Manufacture | Japan |
| Average Price | $375 |
Browse all LPVOs or research the specs in the EDC Index comparison tool.
