PM II ShortDot

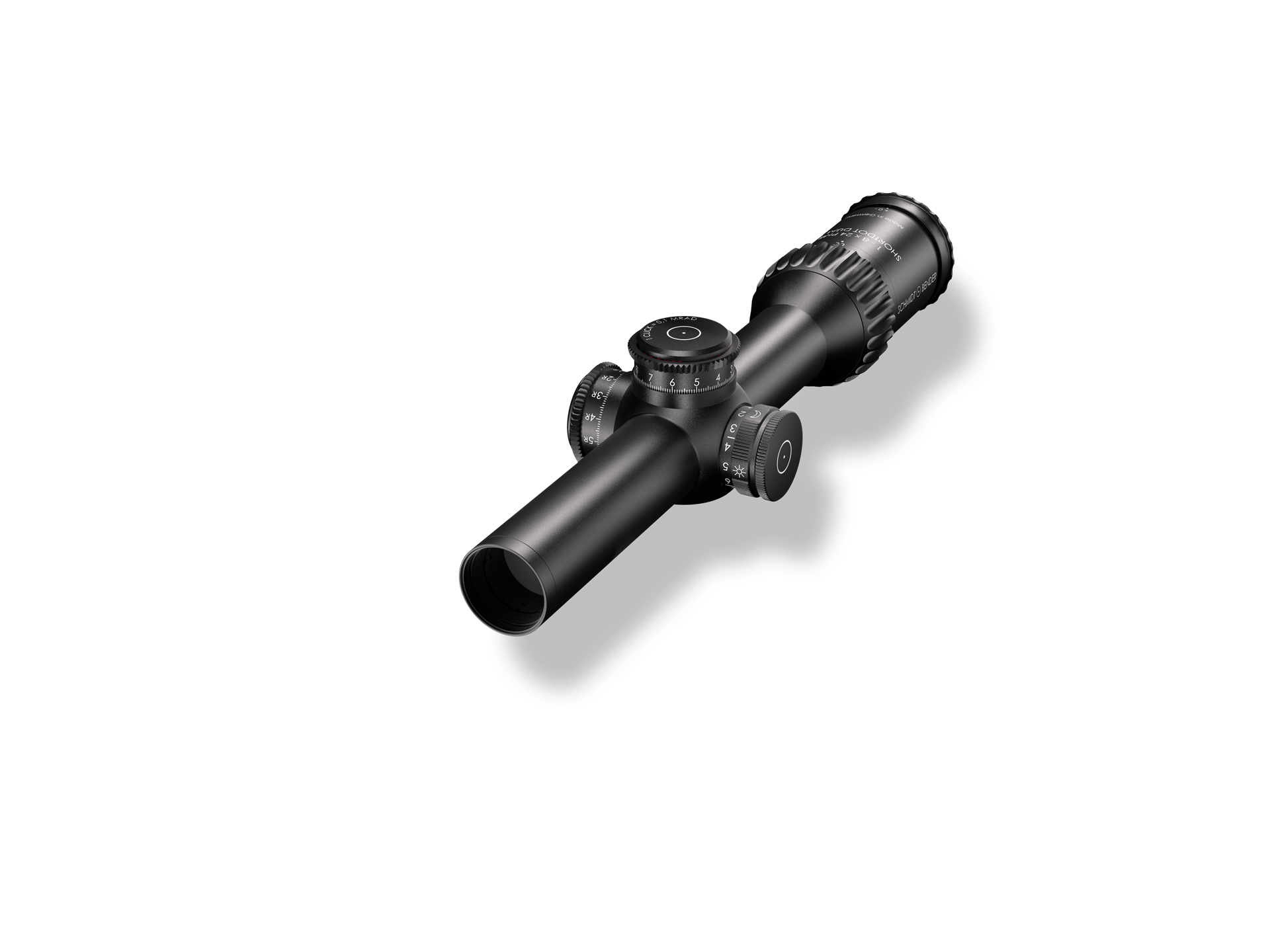

Schmidt & Bender PM II ShortDot Dual CC 1-8x24mm
The Schmidt & Bender PM II ShortDot Dual CC 1-8x24mm is a 1-8x low power variable optic with a first focal plane reticle, on a 24 mm objective and a 30 mm tube. Its MDR-T6 reticle is graduated in Mil and illuminated in red, with turrets adjusting in Mil. Field of view at 1x is 105.9 ft at 100 yards, eye relief is 3.54 in, and the scope is 11.54 inches long and 22.1 oz. Measured against the 236 LPVOs in the index, it lands on the heavier side for weight (22.1 oz), on the longer side for length (11.54 in), on the narrower side for field of view at minimum magnification (105.9 ft at 100 yds), and among the most expensive 10 percent for price ($4,500). It is one of 46 entries in the index that qualify as a 1-8x scope. The closest listed comparison is Zeiss V8 1.1-8x24mm, another 1-8x scope, priced at $2,950.
| Series | PM II ShortDot |
| Magnification Range | 1-8x |
| Objective Diameter (mm) | 24 |
| Tube Diameter (mm) | 30 |
| Focal Plane | FFP |
| Reticle Name | MDR-T6 |
| Reticle Unit | Mil |
| BDC | No |
| Illuminated | Yes |
| Illumination Color | Red |
| Eye Relief (in) | 3.54 |
| Field of View at Min Magnification (ft/100 yds) | 105.9 |
| Adjustment Unit | Mil |
| Length (in) | 11.54 |
| Weight (oz) | 22.1 |
| Country of Manufacture | Germany |
| Average Price | $4,500 |
Browse all LPVOs or research the specs in the EDC Index comparison tool.
